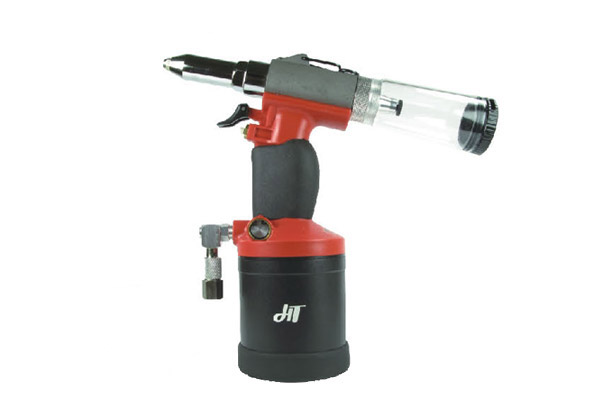

R-493CGV3/16" (4.8mm)
R-492CGV3/16" (4.8mm)
R-612CGV1/4" (6.4mm)
Air Composite Hydraulic Riveter (Vacuum)
| Model | R-493CGV | R-492CGV | R-612CGV |
|---|---|---|---|
| Blind. Rivet Setting Capacity | 3/32" (2.4mm),1/8" (3.2mm), 5/32" (4.0mm),3/16" (4.8mm) |
3/16" (4.8mm), 7/32" (5.6mm), 1/4" (6.4mm) |
|
| Traction Power | 2000lbs (907kgs) | 2000lbs (907kgs) | 3800lbs (1723kgs) |
| Stroke Length | 19/32" (15mm) | 59/64" (23.5mm) | 57/64" (22.6mm) |
| Overall Length | 9-49/64" (248mm) | 10-9/16" (268mm) | 12-3/32" (307mm) |
| Net Weight | 3.1lbs (1.4kgs) | 3.3lbs (1.5kgs) | 4.0lbs (1.8kgs) |
| Avg.Air Consumption | 4 cfm (113 I/min) | 4 cfm (113 I/min) | 4 cfm (113 I/min) |
