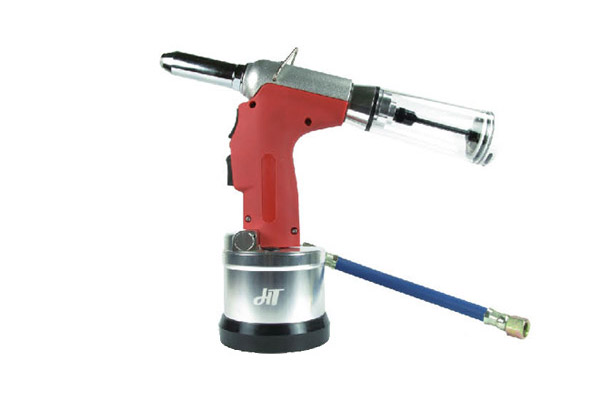

R-485V3/16" (4.8mm)
R-604V1/4" (6.4mm)
R-605V1/4" (6.4mm)
Air-Hydraulic Riveter
| Model | R-485V | R-604V | R-605V |
|---|---|---|---|
| Blind. Rivet Setting Capacity | 3/32" (2.4mm), 1/8" (3.2mm), 5/32" (4.0mm), 3/16" (4.8mm) |
3/32" (2.4mm), 1/8" (3.2mm), 5/32" (4.0mm), 3/16" (4.8mm), 1/4"(6.4mm) |
3/32" (2.4mm), 1/8" (3.2mm), 5/32" (4.0mm), 3/16" (4.8mm), 1/4"(6.4mm) |
| Traction Power | 1805lbs (818kgs) | 2447lbs (1110kgs) | 3410lbs (1547kgs) |
| Stroke Length | 23/32" (18mm) | 53/64" (21mm) | 1-1/32" (26mm) |
| Overall Length | 12-19/32" (320mm) | 12-19/32" (320mm) | 12-19/32" (320mm) |
| Net Weight | 3.3lbs (1.5kgs) | 3.7lbs (1.7kgs) | 4.0lbs (1.8kgs) |
| Avg.Air Consumption | 3 cfm (85 I/min) | 4 cfm (113 I/min) | 4 cfm (113 I/min) |
