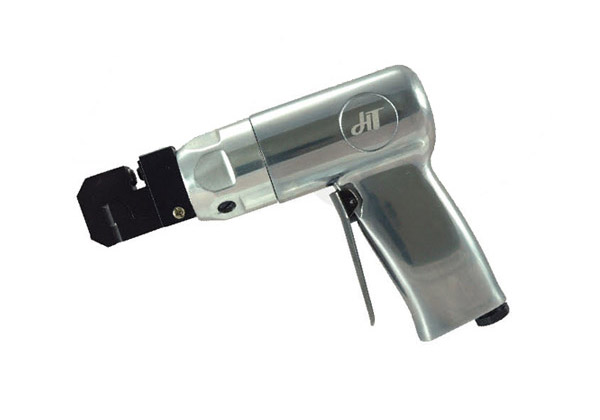

PF-50P(Diaφ5mm)
PF-55P(Diaφ5.5mm)
PF-80P(Diaφ8mm)
Air Punch & Flange
| Model | PF-50P | PF-55P | PF-80P |
|---|---|---|---|
| Capacity Steel | 1.2mm | 1.2mm | 1.2mm |
| Capacity Alum | 1.4mm | 1.4mm | 1.4mm |
| Punch Dia | 5 mm | 5.5 mm | 8 mm |
| Overall Length | 7-9/32" (185mm) | 7-9/32" (185mm) | 7-9/32" (185mm) |
| Net Weight | 2.4lbs (1.1kgs) | 2.4lbs (1.1kgs) | 2.4lbs (1.1kgs) |
| Air Inlet | 1/4" | 1/4" | 1/4" |
| Air Hose | 3/8" | 3/8" | 3/8" |
| Avg.Air Consumption | 2 cfm (57 I/min) | 2 cfm (57 I/min) | 2 cfm (57 I/min) |
