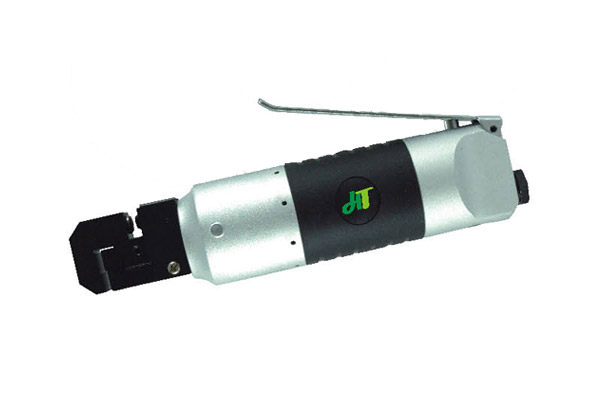

PF-50GS(Diaφ5mm)
PF-55GS(Diaφ5.5mm)
PF-80GS(Diaφ8mm)
Air Punch & Flange
| Model | PF-50GS | PF-55GS | PF-80GS |
|---|---|---|---|
| Capacity Steel | 1.4mm | 1.4mm | 1.4mm |
| Capacity Alum | 1.6mm | 1.6mm | 1.6mm |
| Punch Dia | 5 mm | 5.5 mm | 8 mm |
| Overall Length | 9-3/4" (248mm) | 9-3/4" (248mm) | 9-3/4" (248mm) |
| Net Weight | 2.6lbs (1.2kgs) | 2.6lbs (1.2kgs) | 2.6lbs (1.2kgs) |
| Air Inlet | 1/4" | 1/4" | 1/4" |
| Air Hose | 3/8" | 3/8" | 3/8" |
| Avg.Air Consumption | 2 cfm (57 I/min) | 2 cfm (57 I/min) | 2 cfm (57 I/min) |
