AGG-10

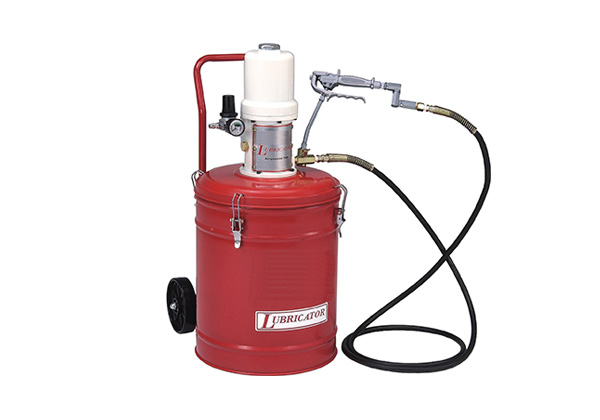

Air Operated Grease Pump (30L)

*The barrel body is made of high-grade steel plate. It came to become durable and lasting even more after being made manually.

*Inside diameter (ID) of barrel is 350mm. The inside height of barrel is 430mm. It can contain 5 gallons of barrel packed grease from all nations around the world.

*Suitable for all sorts of machinery, vehicles, airplanes, ships, etc. The efficient instrument for infusing grease powerfully for lubrication & maintenance purpose.

*Pump of separate type: utilize the principle of liquid getting pumped & driven by air compressor to draw liquid. There are two independent & separate cycle systems of pump out there, which prevents air-compressor-exhaust from getting to the grease inside the barrel and deteriorating its quality.

Grease Usage:

*General 00#~2# grease all can be infused into smoothly.
*In chilly areas or with such grease of high viscosity, we suggest you order extra the optional accessory of "Follower Plate".
Model AGG-10
Capacity 30L
Air Input Pressure 4~9 bar (60~130 psi)
Pressure Ratio 45:1
Grease Output Pressure 180~405 bar (2700~5850 psi)
Deliver Rate 30 c.c/sec
Hose Length 10 ft
Net Weight 48.8 lbs (18.5 kgs)
