IW-8505S (2" Anvil)
IW-8505S-6 (6" Anvil)
IW-8505S-8 (8"Anvil)

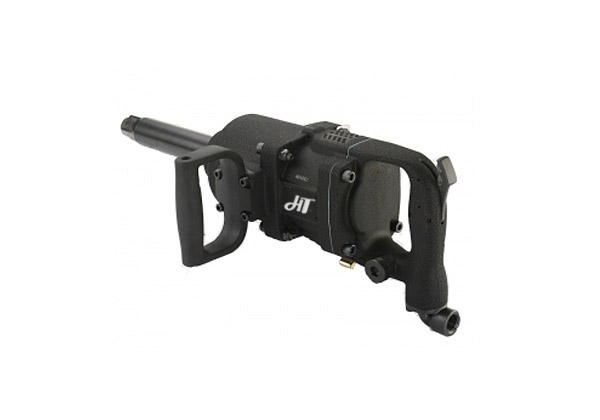

1" Super Duty Impact Wrench (Pin Less)
| Model |
IW-8505S |
IW-8505S-6 |
IW-8505S-8 |
| Bolt Size Capacity |
1-25/32" (45mm) |
1-25/32" (45mm) |
1-25/32" (45mm) |
| Free Speed |
4800 rpm |
4800 rpm |
4800 rpm |
| Max Torque |
2800ft-lb (3797Nm) |
2800ft-lb (3797Nm) |
2800ft-lb (3797Nm) |
| Overall Length |
14-9/16" (370mm) |
20-9/16" (522mm) |
22-7/16" (570mm) |
| Net Weight |
24.3 lbs (11.0kgs) |
26.5 lbs (12.0kgs) |
27.6 lbs (12.5kgs) |
| Air Inlet |
1/2" |
1/2" |
1/2" |
| Air Hose |
3/4" |
3/4" |
3/4" |
| Avg.Air Consumption |
16 cfm (453 I/min) |
16 cfm (453 I/min) |
16 cfm (453 I/min) |
