IW-8330S (2" Anvil)
IW-8330S-6 (6" Anvil)
IW-8330S-8 (8"Anvil)

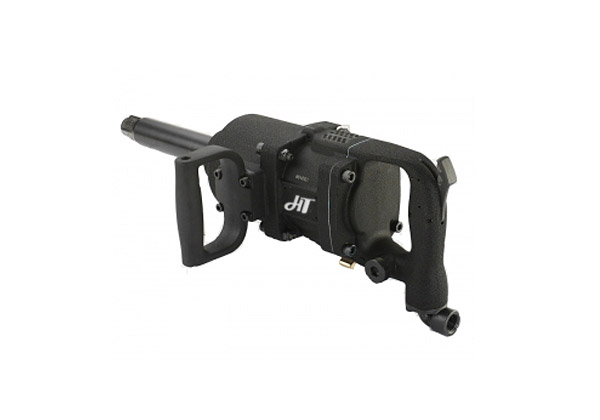

1" Super Duty Impact Wrench (Pin Less)
| Model |
IW-8330S |
IW-8330S-6 |
IW-8330S-8 |
| Bolt Size Capacity |
1-25/32" (45mm) |
1-25/32" (45mm) |
1-25/32" (45mm) |
| Free Speed |
4800 rpm |
4800 rpm |
4800 rpm |
| Max Torque |
2600ft-lb (3526Nm) |
2600ft-lb (3526Nm) |
2600ft-lb (3526Nm) |
| Overall Length |
14-9/16" (370mm) |
20-9/16" (522mm) |
22-7/16" (570mm) |
| Net Weight |
23.1 lbs (10.5kgs) |
25.4 lbs (11.5kgs) |
26.2 lbs (11.9kgs) |
| Air Inlet |
1/2" |
1/2" |
1/2" |
| Air Hose |
3/4" |
3/4" |
3/4" |
| Avg.Air Consumption |
16 cfm (453 I/min) |
16 cfm (453 I/min) |
16 cfm (453 I/min) |
