AG-405M8 4"
AG-503M8 5"
AG-600F4 6"
AG-702F5 7"

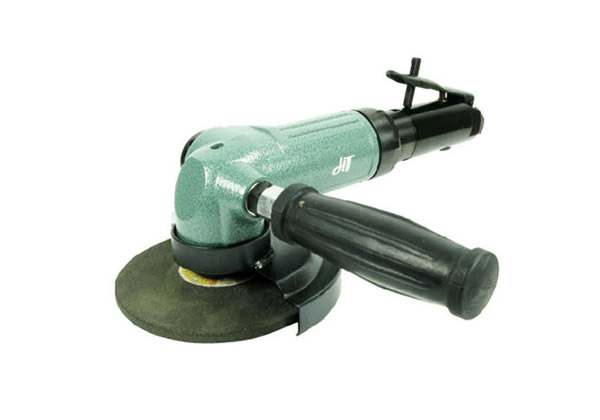

Industrial Air Angle Grinder (Lever Type)
| Model |
AG-405M8 |
AG-503M8 |
| Capacity |
4" (102mm) |
5" (127mm) |
| Free Speed |
13500 rpm |
12000 rpm |
| Overall Length |
10-45/64" (272mm) |
10-45/64" (272mm) |
| Net Weight |
4.4lbs (2.0kgs) |
4.4lbs (2.0kgs) |
| Air Inlet |
1/4" |
1/4" |
| Air Hose |
3/8" |
3/8" |
| Avg.Air Consumption |
5cfm (142 I/min) |
5cfm (142 I/min) |
| Model |
AG-600F4 |
AG-702F5 |
| Capactiy |
6" (152mm) |
7" (178mm) |
| Free Speed rpm |
9000 rpm |
7600 rpm |
| Overall Length |
13-57/64" (353mm) |
13-57/64" (353mm) |
| Net Weight |
6.6lbs (3.0kgs) |
6.6lbs (3.0kgs) |
| Air Inlet |
1/4" |
1/4" |
| Air Hose |
3/8" |
3/8" |
| Avg.Air Consumption |
8 cfm (226 I/min) |
8 cfm (226 I/min) |
