AC-032FR3/8"
AC-042FR1/2"

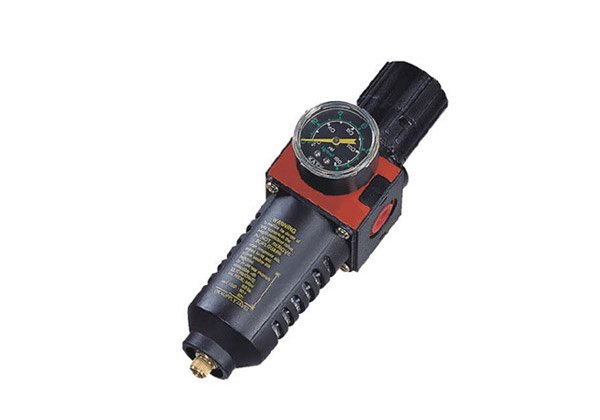

Air Filter & Regulator
| Model | AC-032FR | AC-042FR |
|---|---|---|
| Filter Element | 5 μ | |
| Service Pressure | 1.0~9.8 kg/cm2 | |
| Max Flow | 1200 I/min | |
| Operating Temp Range | 5~50°C | |
| Drain Capacity | 120 ml | |
| Oil Capacity | 120 ml | |
| Recommendable Lubricants | ISO VG32 | |
