AC-025F1/4"
AC-033F3/8"
AC-044F1/2"

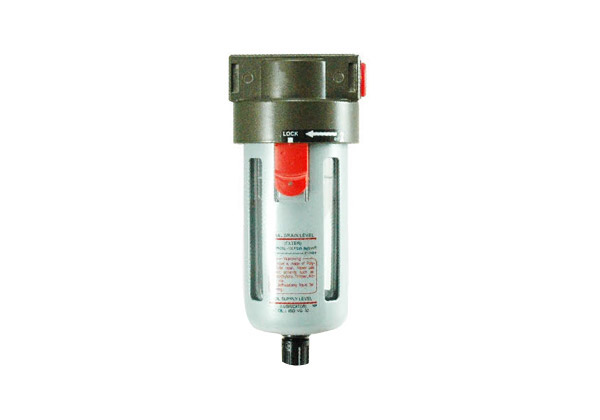

Air Filter
| Model | AC-025F | AC-033F | AC-044F |
|---|---|---|---|
| Filter Element | 5 μ | ||
| Service Pressure | 1.0~10.5 kg/cm2 | ||
| Max Flow | 1000 I/min | 1350 I/min | 3000 I/min |
| Operating Temp Range | 5~60°C | ||
| Drain Capacity | 60 ml | 60 ml | 100 ml |
| Oil Capacity | 90 ml | 90 ml | 160 ml |
| Recommendable Lubricants | ISO VG32 | ||
