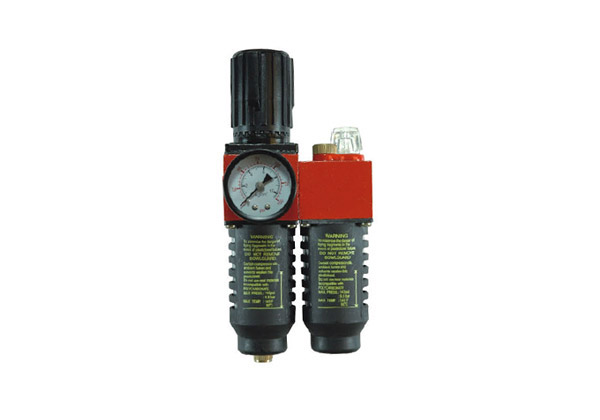

AC-023FR-L
1/4" Air Filter, Regulator & Lubricator
| Model | AC-023FR-L |
|---|---|
| Filter Element | 5 μ |
| Service Pressure | 1.0~9.0 kg/cm2 |
| Max Flow | 980 I/min |
| Operating Temp Range | 5~50°C |
| Drain Capacity | 40 ml |
| Oil Capacity | 40 ml |
| Recommendable Lubricants | ISO VG32 |
