AC-021FRL1/4"
AC-031FRL3/8"
AC-041FRL1/2"

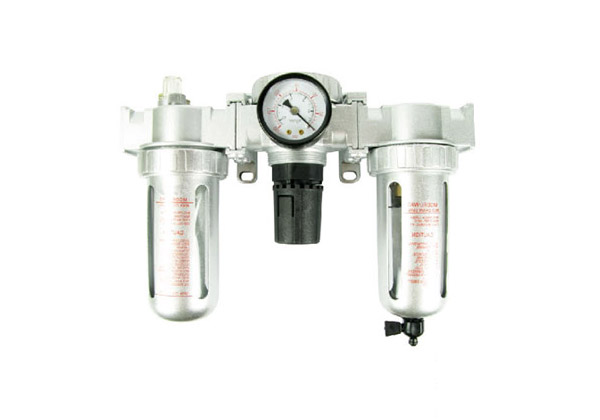

Air Filter, Regulator & Lubricator
| Model | AC-021FRL | AC-031FRL | AC-041FRL |
|---|---|---|---|
| Filter Element | 5 μ | ||
| Service Pressure | 1.0~10.5 kg/cm2 | ||
| Max Flow | 1750 I/min | 2500 I/min | 3000 I/min |
| Operating Temp Range | 5~60°C | ||
| Drain Capacity | 80 ml | ||
| Oil Capacity | 125 ml | ||
| Recommendable Lubricants | ISO VG32 | ||
