AC-010FR-L1/8"
AC-020FR-L1/4"

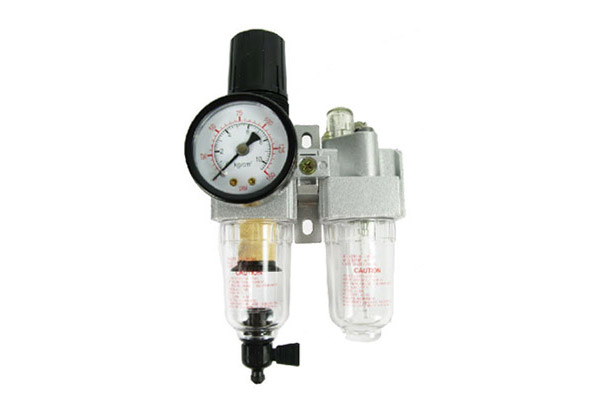

Air Filter, Regulator & Lubricator
| Model | AC-010FR-L | AC-020FR-L |
|---|---|---|
| Filter Element | 5 μ | |
| Service Pressure | 1.0~9.8 kg/cm2 | |
| Max Flow | 1000 I/min | 1250 I/min |
| Operating Temp Range | 5~50°C | |
| Drain Capacity | 15 ml | |
| Oil Capacity | 30 ml | |
| Recommendable Lubricants | ISO VG32 | |
